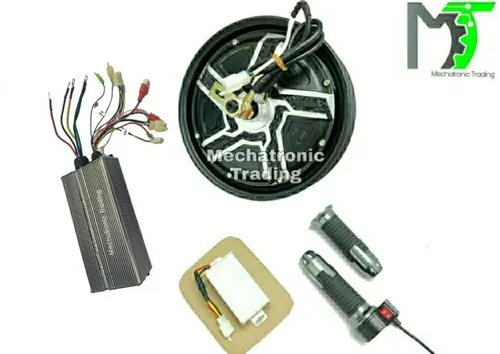

the specificaions are as follows:-
1)specs for 1000 watt hub motor:-
the motor specs are as follows:-
•type: permanent magnet bldc
•voltage (v): 48/60
•no load current (a): 0. 9
•rated current (a): 22
•rated speed (rpm) : 500±30
•rated torque (nm) : 23
•max. Output torque (nm) :44
•rated power (w): 1000
•max. Power output (w): 1650
•efficiency(η): >88%
•insulation class: b
•protection class: ip 67
2)the controller specs for 1000 watt hub motor are as follows:-
•rated voltage: 48/60 v
•peak protection current: 30a
•rated power: 1500 w
•under voltage protection: 41. 5 v
•throttle voltage: 0. 8v to 4. 2v
•phase commutation angle: 120 degrees
•heat dissipation: natural cooling
•ambient temperature: :20 degrees to 60 degrees
3)the dimensions are as follows:-
a)motor dimensions:-
•motor diameter excluding the tyre: 10. 5 inches
•motor diameter including the tyre: 18 inches
•rim width: 3 inches
•shaft diameter: 14 mm
•suitable tyre size: 10*3. 50 inches(activa tyre)
•weight:8. 6 kgs
b)controller dimensions:-
•length: 7 inches
•width: 3. 5 inches
•height: 2 inches
•weight:600 gram
